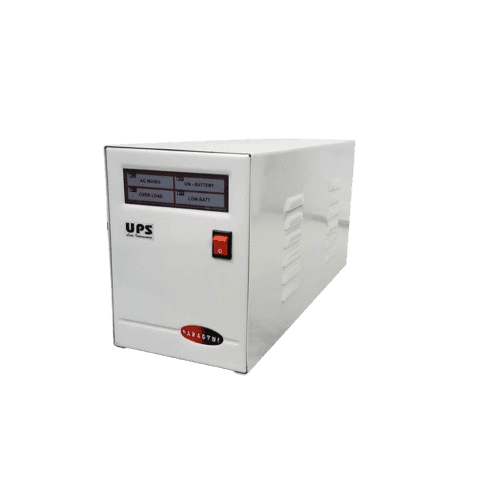

Line Interactive UPS
Description
The PARADYNE Line Interactive UPS is designed to provide reliable power backup for critical systems in a compact and cost-effective solution. With an input voltage range of 160V to 280V, it offers advanced features such as an Automatic Voltage Regulator (AVR) for consistent output and surge suppression for added protection. Its ergonomic, plug-and-play design makes it user-friendly, while its single PCB architecture ensures durability and minimal maintenance. Ideal for homes, small offices, and IT systems, the Line Interactive UPS ensures uninterrupted power with fast switching and robust protection mechanisms.
Available Ratings
500VA -2000VA
Features
Built-in Line Filter & Surge Suppressor
Single PCB Design with Optional External Batteries
High / Low Voltage Cutoff for Safety
Transfer Time: Typical 3 ms, Maximum 5 ms
Inverter Efficiency: >75%
Total Harmonic Distortion: Less than 40% in DC Mode
Load Power Factor: 0.60 Lagging to Unity
Fuse Protection for Overload and Short Circuit
Insulation Resistance: More than 100 MOhm
Leakage Current: <200 Microamperes
Technical Details
Input Voltage: 160V - 280V
Output Voltage: 230V ± 9%
Frequency: 50 Hz ± 3 Hz
Inverter Type: Pulse Width Modulation
Waveform: Syncro Quasi Sine Wave on Inverter
Transfer Time: Typical: 3 ms, Maximum: 5 ms
Load Power Factor: 0.60 Lagging to Unity
Inverter Efficiency: >75%
Total Harmonic Distortion: Less than 40% in DC Mode
Regulation: ±10% Max.
Overload Protection: Fuse Protection
Insulation Resistance: More than 100 MOhm
Leakage Current: < 200 Microamperes
