Description

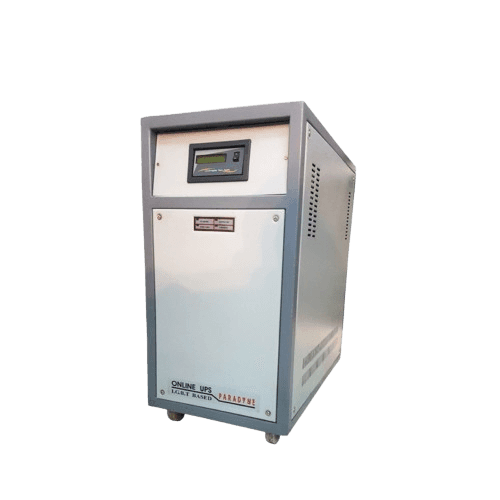

The PARADYNE IGBT-Based Online UPS ensures unmatched power reliability for mission-critical systems. Featuring double-conversion technology with an inbuilt isolation transformer, it delivers pure sinewave output with zero transfer time, making it ideal for data centers, industrial machinery, and IT infrastructure. Equipped with high-frequency PWM inverter technology, high efficiency (>90%), and superior overload protection, it guarantees stable and uninterrupted power even under extreme load conditions.
Double-Conversion Technology with Inbuilt Isolation Transformer
Ensures seamless power transfer with zero transfer time for mission-critical systems.
High Efficiency (>90%)
Delivers superior energy performance, reducing power losses for systems.
Harmonic-Free True Sinewave Output
Provides clean, stable, and distortion-free power for sensitive equipment.
Crystal-Controlled Output Frequency (50 Hz ± 0.05 Hz)
Soft Start Facility for Smooth Power Initialization
High Crest Factor (>4:1) for Handling Peak Loads
Generator Compatible Input (50 Hz ± 10%)
Float Cum Boost Charging for Battery Life Enhancement
Transient Recovery within 3 Cycles
Overload Capacity: 110% for 10 Minutes
Compact and Sleek Design
Audible Noise: ≤55 dB (Up to 10 KVA), ≤60 dB (Above 10 KVA)
Input Voltage: 230V ± 20% / +15% (Single Phase), 415V ± 20% / +15% (Three Phase)
Input Frequency: 50 Hz ± 10% (Generator Compatible)
Output Voltage: 230V ± 1% (Single Phase), 450V (Three Phase)
Output Frequency: 50 Hz ± 0.05 Hz (Crystal Controlled)
Waveform: Harmonic-Free True Sinewave
Transfer Time: NIL (Seamless Double Conversion)
Power Factor: 0.8 Lagging to Unity
Efficiency: >93% (for 360V DC & above), >90% (for 180V DC)
Harmonic Distortion: Less than 3%
Transient Recovery: Within 3 Cycles
Crest Factor: >4:1
Overload Capacity: 110% for 10 Minutes
Operating Temperature: 0°C to 50°C
Relative Humidity: Up to 85% (Non-Condensing)
Audible Noise: ≤55 dB at 1m (Up to 10 KVA), ≤60 dB at 1m (Above 10 KVA)
