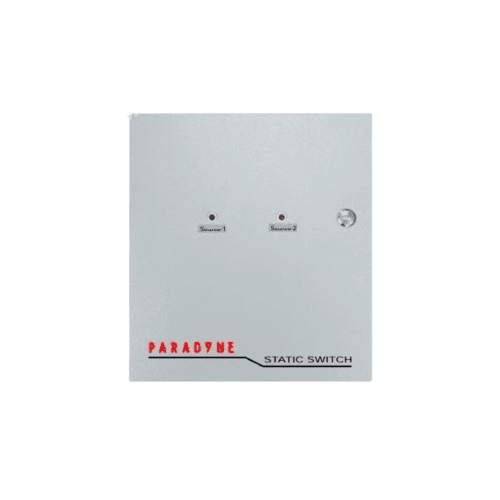

Static Switch
Description
The PARADYNE Static Switch offers seamless and ultra-fast switching between two independent power sources, ensuring uninterrupted power for critical systems. Built with a SCR-based design, it delivers complete electrical isolation and independent switching of phase and neutral lines. With no moving parts, it provides exceptional reliability and a high MTBF (Mean Time Between Failures), making it ideal for mission-critical applications requiring robust and uninterrupted power transfer.
Available Ratings
16 A / 30 A / 60 A / 80 A
Ultra-Fast Transfer Time (≤6 ms)
Ensures seamless switching between two power sources without disruptions.
Independent Switching of Phase and Neutral Lines
Provides enhanced safety and system reliability.
SCR-Based Design with No Moving Parts
Delivers high durability and a long Mean Time Between Failures (MTBF).
Features
Complete Electrical Isolation Between Input and Output
Source 1 Acts as Master; Source 2 as Backup (Slave)
Generator Compatibility (50 Hz)
Load Power Factor: 0.5 to Unity (Leading or Lagging)
Source Voltage THD: ≤10%
Operating Temperature: 0°C to 45°C
Audible Noise: ≤45 dB at 1.5 meters
Relative Humidity: 0% to 95% (Non-Condensing)
Technical Details
Nominal Input Voltage: 220V, 230V, or 240V (Single Phase, 50 Hz)
Maximum Continuous Source: 16 A / 30 A / 60 A / 80 A (50 Hz)
Load Power Factor: 0.5 to Unity (Leading or Lagging)
Source Voltage THD: ≤ 10%
Transfer Time: ≤ 6 ms
Operating Temperature: 0°C to 45°C
Audible Noise: ≤45 dB at 1.5 meters
Relative Humidity: 0% to 95% (Non-Condensing)
